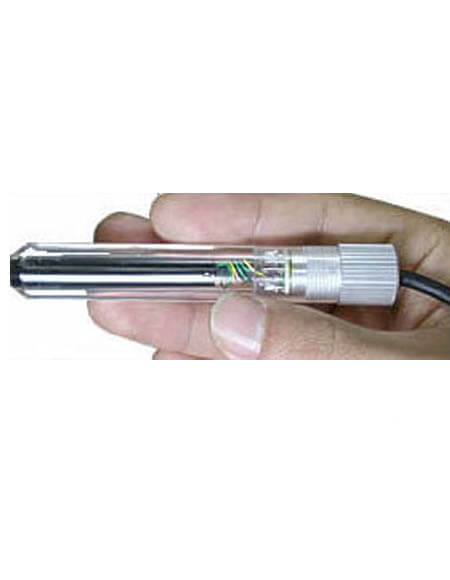

ULTRA MINIATURE CCD CAMERA ALPHA Model: CCN3412L
Features
• The special model with lighting :φ14mm × 100mm(excluded control parts)
• Using 1/7 inch, 340,000 pixels, color CCD, you can see high-definition, high-resolution picture.
• Video Output signal is NTSC. Connection with common television is possible by the attached AV cable.
Examples of use
About to use
Close-up and magnification use
Working distance:
Standard lens ?20mm~
With Lens Adapter(option)?1.5~3mm
Technical specifications
| Sensor | 1 / 7 inch CCD |
| IR Cut Filter | Attached |
| Indication Pixels | 340,000 pixels |
| Pixel Pitch | 4.52 μm×4.52 μm |
| Scanning Mode | 2?1 Interlace |
| Video Output Signal | NTSC Composite Video |
| Field Angle | 51° (Level), 39° (Perpendicular) |
| Focal Distance | F = 2.1mm |
| Brightness | F = 2.9 |
| Material | CCD Camera Cover Aluminum Controller Cover: ABS |
| Cable Length | 1m |
| Cable Diameter | 4mm |
| Weight | 60g (Without A/C Adapter) |
| Operating Temperature/Humidity | 0~40? / 20~80?RH?(Without Dew Condensation) |
| Power Supply | DC12V |
| Input Current | 110mA |
External dimensions
Components
1. CCD Camera with Controller.
2. AV Cable.
3. AC Adapter (I/P: 100V~240VAC,O/P:12VDC): Japanese specifications
Options
1. Lens Adapter (4 adapters/per set) for higher magnification
Magnification by Monitor Size and Lens Adapters (Reference Data?
| Adapter | Magnification by Monitor Size and Lens Adapters | Field Range L×W mm |
Working Distance mm |
||||
| 5 inch | 12 inch | 14 inch | 19 inch | 21 inch | |||
| 1 pc | 25 | 60 | 70 | 95 | 105 | 3.4×4.0 | 3 |
| 2 pcs | 60 | 144 | 168 | 228 | 252 | 1.2×1.6 | 2 |
| 3 pcs | 115 | 276 | 322 | 437 | 483 | 1.2×1.6 | 1.5 |
2. Side-View Attachment
3. USB Video Capture
If you would like to connect the CCD Camera with P/C, you can use this USB video capture.
• Specifications
| Video input signal | NTSC/PAL |
| Power input | From USB port |
| I/F(interface) | USB2.0 based |
| Frame rate | VGA(640Hx480V)30frame/second |
| Dimension | 37x57x23mm |
| Operating environment |
|
| Attached soft | USB driver |
| Attached USB cable | cable length 500mm |
(4) 7 inch TFT Monitor
| Video input signal | NTSC/PAL |
| Resolution | 800(W)x400(H)pixels |
| Brightness | 220cd/m2 |
| Opration Voltage | DC12V |
| Dimension | 182(W)x133(H)x35(D) |
| Weight | 2kg |
| Function | Brightness, Contrast, Saturation and Hue |
| Video In terminal | 1 (BNC and RCA) |
| S-Video In terminal | 1 (Mini Din) |
| Video Out terminal | 1 (BNC and RCA) |
| AC Adapter | In: AC100V~AC240V Out: DC12V , 1.5A |
| Safety standard | UL, PSE |
